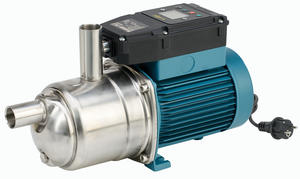

E-MXA

Construction
Pressurized system with integrated pressure control.
Easy to install and Compact plug and play booster set.
Brand new asynchronous single-phase motor.
Equipped with pressure transducer, non-return valve, controlled starting current and temperature.
Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the re-start pressure. An ideal solution which allows to reduce or remove the need of a expansion tank.

Features
- high efficiency asynchronous single-phase motor
- capacitor not stressed in voltage
- uniform and lower motor temperature
- motor power control
- programmable re-start pressure
- no hydraulic losses due to the measuring devices
- voltage and current control
- monitoring of maximum starting current
- elimination of water hammer

Protections
- dry-run protection
- air detection in the pump and in the filling cycle
- overload control and overheating motor control
- pump blockage
- overcurrent protection
- power supply control
- system leakage control
- high flow rate and piping failure detection
